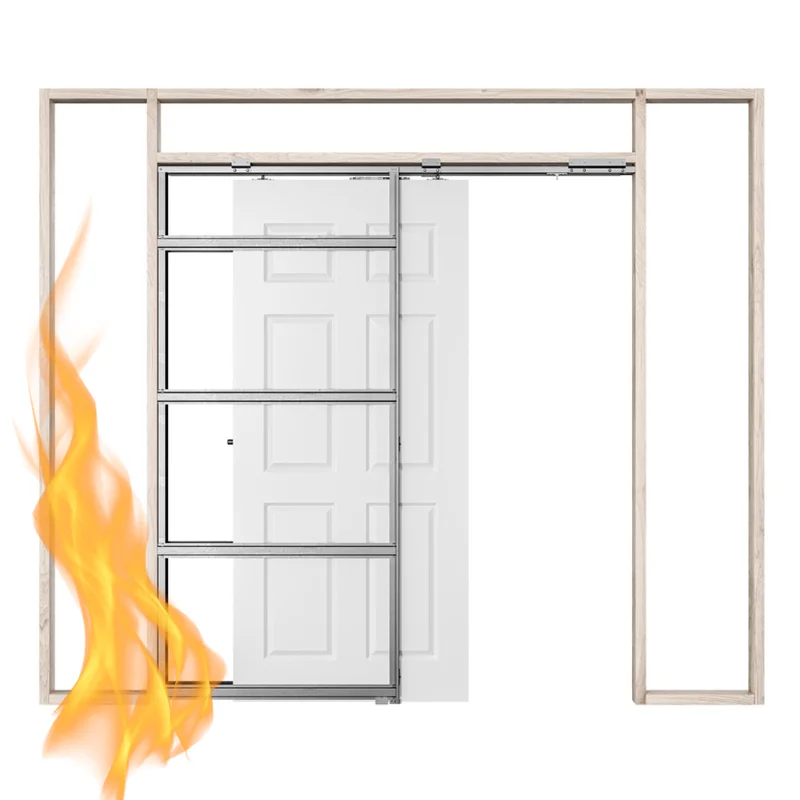

Fire Rated Pocket Door System – 70mm Frame

Description

Complete fire rated pocket sliding door system with galvanised steel pocket frame, sliding track and running gear. 70mm thick frame is made specifically to fit 63/70/95mm stud work making installation even easier than before. Perfect solution to complete a finished wall thickness of 120mm.

• FD30 approved jamb kit
• Intumescent pack included
• Suitable for 44mm thick doors
• Maximum door weight up to 60kg
• Supplied with a lifetime warranty (covers any parts that are faulty)
• Available in various sizes to fit door sizes:
  • 610/686/762/838/914mm x 1981mm
  • 726/826/926mm x 2040m

Kit includes:

• Top track
• Floor guide
• Intumescent pack
• A full FD30 approved jamb kit
• Runners with carbon steel ‘sealed for life’ bearings
• A spring steel stopper (soft close option available)
• All the galvanised steel uprights and horizontals required to build the pocket
• The brackets to fit the frame to the stud that doubles as plasterboard supports

Please note that:

• The door is not included
• Not smoke sealed approved
